591-2101-113NF

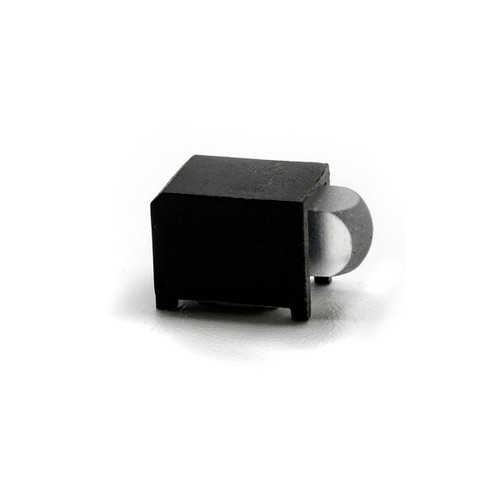

591 Prism® SMD 3mm Sq R 640nm 13" Reel

  • Specifications

    Specifications
    Series 591
    Certifications RoHS
    Status Active
    Lens Size (mm) 3.0
    Lens Shape Square
    Lens Material Silicone
    Levels Single Level
    Position 1 Emitted Color Red
    Test Current Pos 1 10 mA Int / 20 mA Voltage
    Typ Dominant Wavelength - Pos 1 (nm) 640
    Typ Intensity - Pos 1 (mcd) 33
    Typ Fwd Voltage - Pos 1 1.85
    Max Fwd Voltage - Pos 1 2.5
    Power Dissipation - Pos 1 (mW) 75
    Forward Current - Pos 1 (mA) 30
    Peak Fwd Current - Pos 1 (mA) 155
    Electrostatic Discharge - Pos 1 (V) 3000
    Output Single Color
    Packaging Option 13" Reel
    Quantity (per reel/sample) 1600
    Viewing Angle 40
    Operating Temperature -40°C to +85°C (-40°F to +185°F)
    Storage Temperature -40°C to +85°C (-40°F to +185°F)
    Solder Max Time/Temp °C 5 sec @ 260 °C
  • C-Drawing C18498.pdf
    3D STP File 591-PRISM_square_lens.stp
    Request Compliance Documentation Request Compliance Documentation
