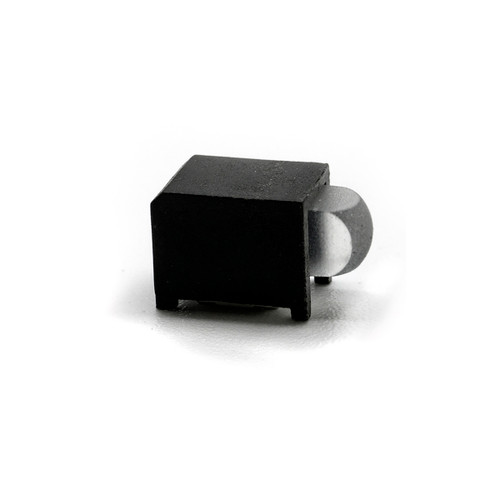

| Series |
591 |
| Certifications |
RoHS |
| Status |
Active |
| Lens Size (mm) |
3.0 |
| Lens Shape |
Square |
| Lens Material |
Silicone |
| Levels |
Single Level |
| Output |
Single Color |
| Position 1 Emitted Color |
Green |
| Packaging Option |
7" Reel |
| Quantity (per reel/sample) |
400 |
| Test Current Pos 1 |
10 mA Int / 20 mA Voltage |
| Typ Dominant Wavelength - Pos 1 (nm) |
570 |
| Typ Intensity - Pos 1 (mcd) |
19 |
| Typ Fwd Voltage - Pos 1 |
2 |
| Max Fwd Voltage - Pos 1 |
2.4 |
| Viewing Angle |
40 |
| Forward Current - Pos 1 (mA) |
30 |
| Peak Fwd Current - Pos 1 (mA) |
1000 |
| Electrostatic Discharge - Pos 1 (V) |
2000 |
| Operating Temperature |
-40°C to +100°C (-40F to +212°F) |
| Storage Temperature |
-40°C to +100°C (-40F to +212°F) |
| Solder Max Time/Temp °C |
5 sec @ 260 °C |
| Derating mA/°C |
1.0 mA / 85°C |
| Reverse Voltage (V) |
12 |
