568-2200-111F

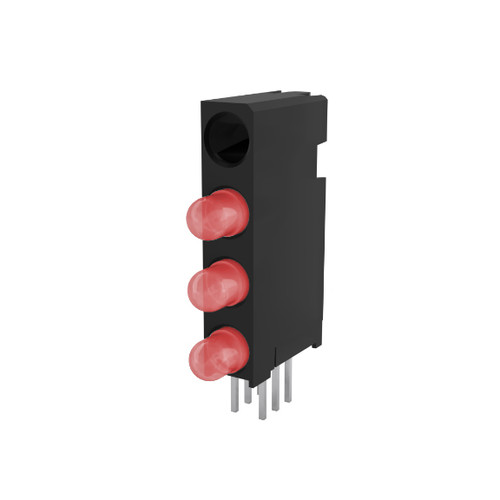

568 Series 3 mm Quad Level CBI X,R,R,R .150 LED Spacing

  • Specifications

    Specifications
    Series 568
    Certifications RoHS
    Status Active
    Lens Size (mm) 3.0
    Lens Shape Round
    Housing Configuration 4 high x 1 wide
    Mounting Orientation Right Angle
    LED Position Protruding
    Housing Form block
    PCB to LED centerline 0.100" (2.54mm)
    Overall Output Single Color
    Emitted Color 2 Red
    Emitted Color 3 Red
    Emitted Color 4 Red
    Total #LEDs 3
    LED Color Configuration X/R/R/R
    Lens Color LED 2 Tinted, Non-Diffused
    Lens Color LED 3 Tinted, Non-Diffused
    Lens Color LED 4 Tinted, Non-Diffused
    Viewing Angle 45
    Polarity Cathode Right
    Test Current LED 2 10 mA Int / 20 mA Voltage
    Test Current LED 3 10 mA Int / 20 mA Voltage
    Test Current LED 4 10 mA Int / 20 mA Voltage
    Intensity (mcd) LED 2 29
    Intensity (mcd) LED 3 29
    Intensity (mcd) LED 4 29
    Forward Voltage LED 2 2
    Forward Voltage - Max LED 2 2.6
    Forward Voltage LED 3 2
    Forward Voltage - Max LED 3 2.6
    Forward Voltage LED 4 2
    Forward Voltage - Max LED 4 2.6
    Dominant Wavelength (nm) LED 2 623
    Dominant Wavelength (nm) LED 3 623
    Dominant Wavelength (nm) LED 4 623
    Reverse Current Intensity (uA) LED 2 100
    Reverse Current Intensity (uA) LED 3 100
    Reverse Current Intensity (uA) LED 4 100
    Power Dissipation - LED 2 (mW) 100
    Power Dissipation - LED 3 (mW) 100
    Power Dissipation - LED 4 (mW) 100
    Continuous Forward Current (mA) LED 2 30
    Continuous Forward Current (mA) LED 3 30
    Continuous Forward Current (mA) LED 4 30
    Peak Forward Current (mA) LED 2 120
    Peak Forward Current (mA) LED 3 120
    Peak Forward Current (mA) LED 4 120
    Derating mA/°C LED 2 0.4 from 50 °C
    Derating mA/°C LED 3 0.4 from 50 °C
    Derating mA/°C LED 4 0.4 from 50 °C
    Operating Temperature -55°C to +100°C (-67°F to +212°F)
    Storage Temperature -55°C to +100°C (-67°F to +212°F)
    Solder Max Time/Temp °C 5 sec @ 260 °C
  • Selector Guide/Catalog Dialight CBI Selector Guide
    Request Compliance Documentation Request Compliance Documentation
    C-Drawing C17280.pdf
