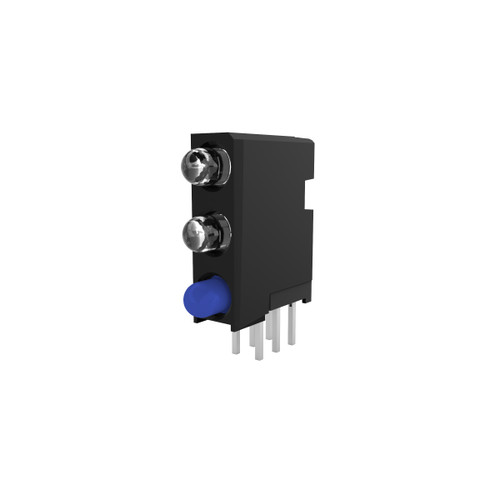

| Series |
564 |
| Certifications |
RoHS |
| Status |
Active |
| Lens Size (mm) |
3.0 |
| Lens Shape |
Round |
| Housing Configuration |
3 high x 1 wide |
| Mounting Orientation |
Right Angle |
| LED Position |
Protruding |
| Housing Form |
block |
| PCB to LED centerline |
.100" +/-.010 (2.54mm +/- 0.254mm) |
| Overall Output |
Single Color |
| Emitted Color |
White |
| Emitted Color 2 |
White |
| Emitted Color 3 |
Blue |
| Total #LEDs |
3 |
| LED Color Configuration |
WWB |
| Lens Color |
Non-Tinted, Non-Diffused |
| Lens Color LED 2 |
Non-Tinted, Non-Diffused |
| Lens Color LED 3 |
Tinted, Diffused |
| Viewing Angle |
45 |
| Polarity |
Cathode Right |
| Test Current |
20 mA |
| Test Current LED 2 |
20 mA |
| Test Current LED 3 |
10 mA |
| Intensity (mcd) |
1100 |
| Intensity (mcd) LED 2 |
1100 |
| Intensity (mcd) LED 3 |
57 |
| Forward Voltage |
3.5 |
| Forward Voltage - Max |
4 |
| Forward Voltage LED 2 |
3.5 |
| Forward Voltage - Max LED 2 |
4 |
| Forward Voltage LED 3 |
3 |
| Forward Voltage - Max LED 3 |
3.8 |
| Peak Wavelength (nm) LED 3 |
518 |
| Power Dissipation (mW) |
120 |
| Power Dissipation - LED 2 (mW) |
120 |
| Power Dissipation - LED 3 (mW) |
120 |
| Continuous Forward Current (mA) |
30 |
| Continuous Forward Current (mA) LED 2 |
30 |
| Continuous Forward Current (mA) LED 3 |
30 |
| Peak Forward Current (mA) |
100 |
| Peak Forward Current (mA) LED 2 |
100 |
| Peak Forward Current (mA) LED 3 |
100 |
| Derating mA/°C |
0.45 from 30 °C |
| Derating mA/°C LED 2 |
0.45 from 30 °C |
| Derating mA/°C LED 3 |
0.5 from 30 °C |
| Operating Temperature |
-40°C to +85°C (-40°F to +185°F) |
| Storage Temperature |
-40°C to +100°C (-40F to +212°F) |
| Solder Max Time/Temp °C |
5 sec @ 260 °C |
