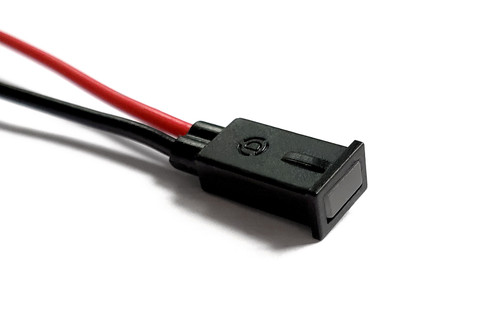

559-Rectangle PMI Y, 2.1 VDC

  • Specifications

    Series 559
    Certifications RoHS
    Status Active
    Mounting Hole Size 0.216 x 0.139" (5.49 x 3.53mm)
    Output Single Color
    Emitted Color Yellow
    LED Position Recessed
    Lens Style Flat
    Lens Color Non-Tinted, Diffused
    Voltage 2.1
    Resistor External Resistor Required
    Mounting Method Snap-in
    Max Panel Thickness .031–.062" (.787–1.57 mm)
    Typical Current (mA) 20
    Typical Intensity (mcd) 140
    Termination 14" Wire Leads
    Lead Wire Gauge 24 AWG
    Housing Material Polycarbonate
    Operating Temperature -55°C to +100°C (-67°F to +212°F)
    Storage Temperature -55°C to +100°C (-67°F to +212°F)
