559-2301-003F

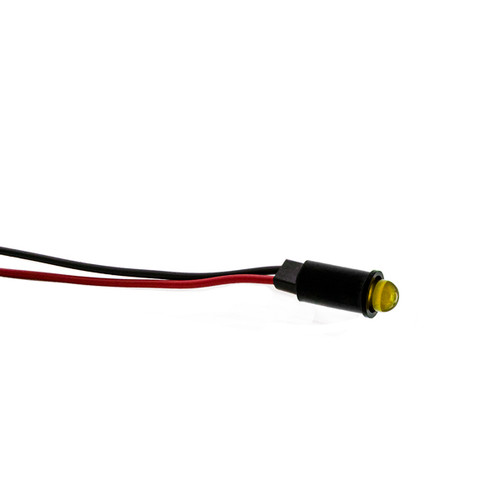

559 LED PMI 0.250" Yellow, Tintd, Diff, 2.1 VDC, Low Inst, 6" Wire Leads, 24 AWG, Ext Resist Req

  • Specifications

    Specifications
    Series 559
    Status Active
    Mounting Hole Size 0.250" (6.35mm)
    Output Single Color
    Emitted Color Yellow
    LED Position Protruding
    Lens Style Domed
    Lens Color Tinted, Diffused
    Resistor External Resistor Required
    Mounting Method Snap-in
    Max Panel Thickness .031–.062" (.787–1.57 mm)
    Polarity Sensitive Yes
    Typical Current (mA) 10
    Typical Intensity (mcd) 29
    Termination 6" Wire Leads
    Lead Wire Gauge 24 AWG
    Operating Temperature -55°C to +100°C (-67°F to +212°F)
    Storage Temperature -55°C to +100°C (-67°F to +212°F)
    Certifications RoHS
  • Datasheet Dialight_PMI_data_559_Jan2019.pdf
    Selector Guide/Catalog Dialight_Panel_Mount_Indicator_Catalog.pdf
    3D STP File 559XX0X003F.stp
