559-3001-003F

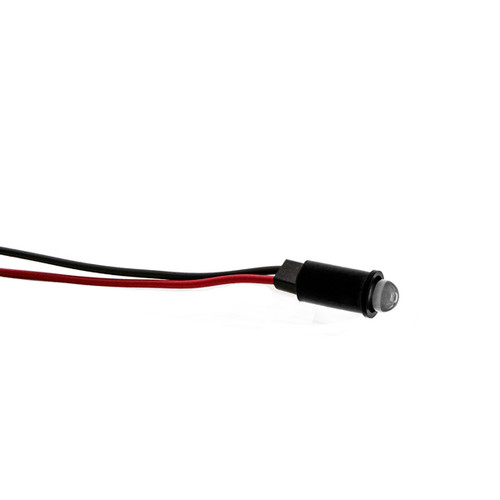

559 LED PMI 0.250" Red/Green, Non-Tintd, Diff, 1.8/2.1 VDC, 6" Wire Leads, 24 AWG, Ext Resist Req

  • Specifications

    Specifications
    Series 559
    Status Active
    Certifications RoHS
    Mounting Hole Size 0.250" (6.35mm)
    Output BiColor
    Emitted Color Red
    Emitted Color 2 Green
    LED Position Protruding
    Lens Style Domed
    Lens Color Non-Tinted, Diffused
    Resistor External Resistor Required
    Mounting Method Snap-in
    Max Panel Thickness .031–.062" (.787–1.57 mm)
    Polarity Sensitive Yes
    Typical Current (mA) 20
    Typical Intensity (mcd) 90
    Typical Intensity Color 2 (mcd) 40
    Termination 6" Wire Leads
    Lead Wire Gauge 24 AWG
    Operating Temperature -55°C to +100°C (-67°F to +212°F)
    Storage Temperature -55°C to +100°C (-67°F to +212°F)
