559-6301-007F

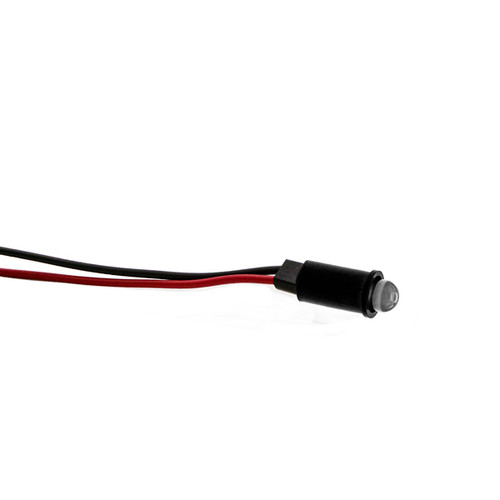

559 LED PMI 0.250" Orange, Non-Tintd, Non-Diff, 1.9 VDC, 14" Wire Leads, 24 AWG, Ext Resist Req

  • Specifications

    Specifications
    Series 559
    Status Active
    Certifications RoHS
    Mounting Hole Size 0.250" (6.35mm)
    Output Single Color
    Emitted Color Orange
    LED Position Protruding
    Lens Style Domed
    Lens Color Non-Tinted, Non-Diffused
    Resistor External Resistor Required
    Mounting Method Snap-in
    Max Panel Thickness .031–.062" (.787–1.57 mm)
    Polarity Sensitive Yes
    Typical Current (mA) 20
    Typical Intensity (mcd) 4000
    Termination 14" Wire Leads
    Lead Wire Gauge 24 AWG
    Operating Temperature -40°C to +100°C (-40F to +212°F)
    Storage Temperature -55°C to +100°C (-67°F to +212°F)
  • Datasheet Dialight_datasheet_559_SnapIn.pdf
    Selector Guide/Catalog Dialight_Panel_Mount_Indicator_Catalog.pdf
    3D STP File 559XX0X003F.stp
    Request Compliance Documentation Request Compliance Documentation
