559-0203-023F

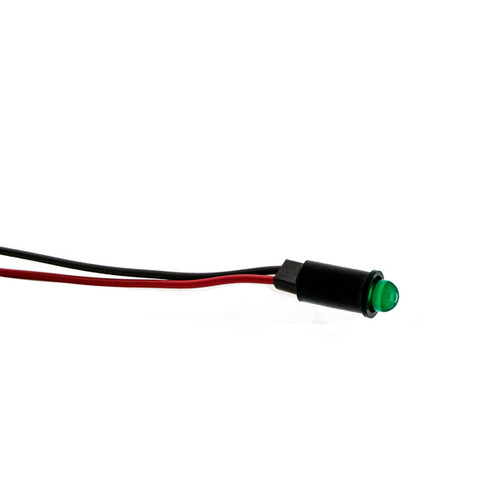

559 LED PMI 0.250" Green, Tintd, Diff, 12 VDC, 6" PVC-Free Wire Leads, 24 AWG

  • Specifications

    Specifications
    Series 559
    Status Active
    Certifications RoHS
    Mounting Hole Size 0.250" (6.35mm)
    Output Single Color
    Emitted Color Green
    LED Position Protruding
    Lens Style Domed
    Lens Color Tinted, Diffused
    Voltage 12 VDC
    Resistor Internal Resistor Included
    Mounting Method Snap-in
    Max Panel Thickness .031–.062" (.787–1.57 mm)
    Polarity Sensitive Yes
    Typical Current (mA) 13
    Typical Intensity (mcd) 595
    Termination 6" PVC-Free Wire Leads
    Lead Wire Gauge 24 AWG
    Operating Temperature -20°C to +85°C (-4°F to +185°F)
    Storage Temperature -55°C to +100°C (-67°F to +212°F)
