558-6003-001F

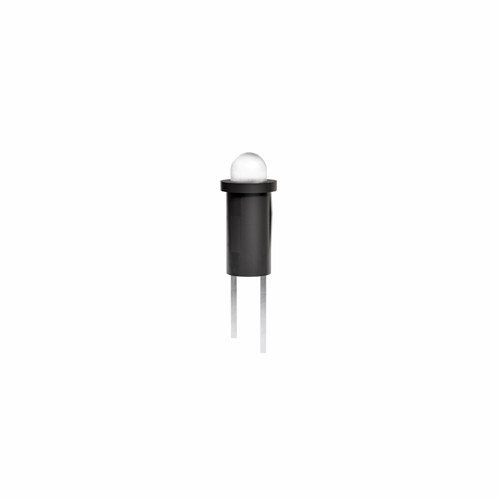

558 LED PMI 0.155-0.158" Blue, Non-Tintd, Non-Diff, 3.3 VDC, Straight Leads,Ext Resist Req

  • Specifications

    Specifications
    Series 558
    Status Active
    Mounting Hole Size 0.156" (3.96mm)
    Output Single Color
    Emitted Color Blue
    LED Position Protruding
    Lens Style Domed
    Lens Color Non-Tinted, Non-Diffused
    Resistor External Resistor Required
    Mounting Method Snap-in
    Typical Current (mA) 20
    Typical Intensity (mcd) 520
    Termination Straight Leads
    Housing Material Valox
    Operating Temperature -40°C to +85°C (-40°F to +185°F)
    Storage Temperature -55°C to +100°C (-67°F to +212°F)
