557-1101-203F

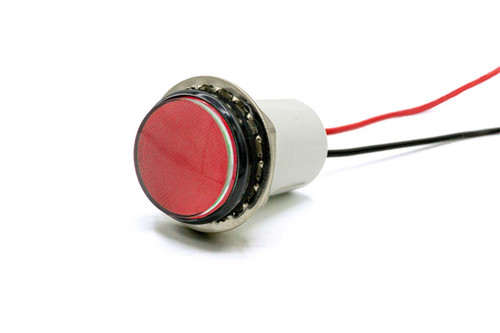

557 LED PMI 0.687" Flat, Red, 4.3 VDC, Low Int, Watertight

  • Specifications

    Specifications
    Series 557
    Certifications RoHS, Watertight to Mil-L-3661B Spec
    Status Active
    Features Watertight
    Mounting Hole Size 0.687" (17.45mm)
    Output Single Color
    Emitted Color Red
    LED Position Internal
    Lens Style Flat
    Lens Color Non-Tinted, Diffused
    Resistor External Resistor Required
    Mounting Method Nut/Washer
    Max Panel Thickness .156" (3.96mm)
    Mounting Torque 15
    Mounting Torque Unit of Measure lb-in
    Typical Current (mA) 40
    Typical Intensity (mcd) 800
    Termination 5.5" Wire Leads
    Lead Wire Gauge 24 AWG
    Housing Material Polycarbonate
    Lens Material Transparent Polycarbonate (UL 94V-0)
    Lock Washer White Nickel
    Nut White Nickel
    Operating Temperature -25°C to +85°C (-13°F to +185°F)
    Storage Temperature -30°C to +100°C (-22°F to +212°F)
