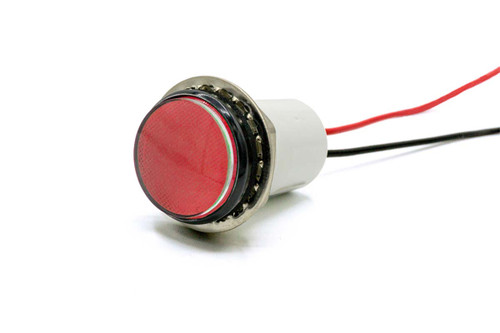

Series |
557 |
Certifications |
RoHS, Watertight to Mil-L-3661B Spec |
Status |
Active |
Features |
Watertight |
Mounting Hole Size |
0.687" (17.45mm) |
Output |
Single Color |
Emitted Color |
Red |
LED Position |
Internal |
Lens Style |
Flat |
Lens Color |
Non-Tinted, Diffused |
Voltage |
12 VDC |
Mounting Method |
Nut/Washer |
Max Panel Thickness |
.156" (3.96mm) |
Mounting Torque |
15 |
Mounting Torque Unit of Measure |
lb-in |
Typical Current (mA) |
20 |
Typical Intensity (mcd) |
800 |
Termination |
5.5" Wire Leads |
Lead Wire Gauge |
24 AWG |
Housing Material |
Polycarbonate |
Lens Material |
Transparent Polycarbonate (UL 94V-0) |
Lock Washer |
White Nickel |
Nut |
White Nickel |
Operating Temperature |
-25°C to +85°C (-13°F to +185°F) |
Storage Temperature |
-30°C to +100°C (-22°F to +212°F) |
