556-150A-314F

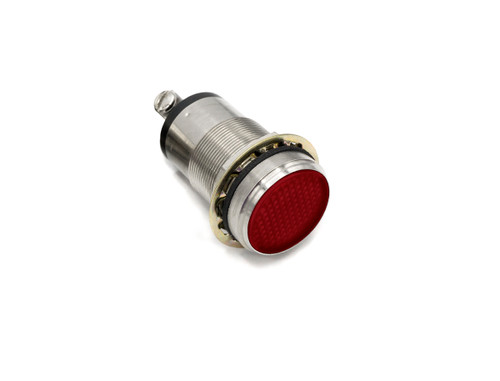

556 LED PMI Daylight Viewable 1" Flat Red, 18-48 VDC Constant Int

  • Specifications

    Specifications
    Series 556
    Certifications RoHS w/ 6C exemption, IK07, IP66, NEMA 4X
    Status Active
    Mounting Hole Size 1.00" (25.4mm)
    Output Single Color
    Emitted Color Red
    LED Position Internal
    Lens Style Flat
    Lens Color Non-Tinted, Non-Diffused
    Voltage 18-48 VDC
    Resistor Internal Resistor Included
    Mounting Method Nut/Washer
    Max Panel Thickness .600" (15.24mm)
    Mounting Torque 40
    Mounting Torque Unit of Measure lb-in
    Polarity Sensitive Yes
    Typical Current (mA) 7.3–8.2
    Typical Intensity (mcd) 400
    Termination Screw Terminals
    Termination Finish Hot Solder Dip
    Housing Material Brass
    Housing Finish White Nickel
    Lock Washer Zinc w/ Yellow Chromate
    Nut White Nickel
    Operating Temperature -30°C to +85°C (-22°F to +185°F)
    Storage Temperature -40°C to +100°C (-40F to +212°F)
