556-1603-314F

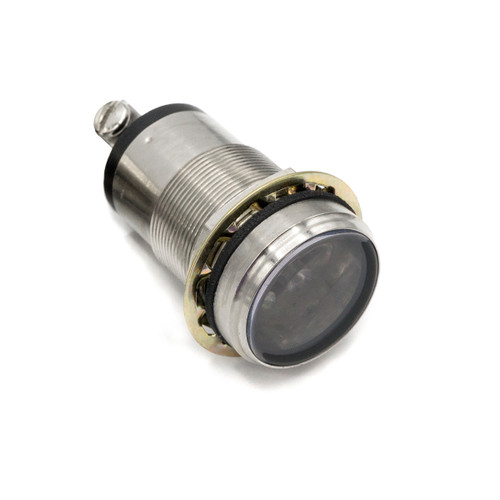

556 LED PMI Daylight Viewable 1" Flat Green, 12 VDC

  • Specifications

    Specifications
    Series 556
    Status Active
    Features Daylight Viewable
    Mounting Hole Size 1.00" (25.4mm)
    Output Single Color
    Emitted Color Green
    LED Position Internal
    Lens Style Flat
    Lens Color Non-Tinted, Non-Diffused
    Voltage 12 VDC
    Resistor Internal Resistor Included
    Mounting Method Nut/Washer
    Max Panel Thickness .600" (15.24mm)
    Mounting Torque 40
    Mounting Torque Unit of Measure lb-in
    Polarity Sensitive Yes
    Typical Current (mA) 60
    Typical Intensity (mcd) 6900
    Termination Screw Terminals
    Termination Finish Hot Solder Dip
    Housing Material Metal
    Lens Material Transparent Polycarbonate
    Housing Finish White Nickel
    Lock Washer Zinc w/ Yellow Chromate
    Nut White Nickel
    Operating Temperature -30°C to +85°C (-22°F to +185°F)
    Storage Temperature -40°C to +100°C (-40F to +212°F)
