556-1506-204F

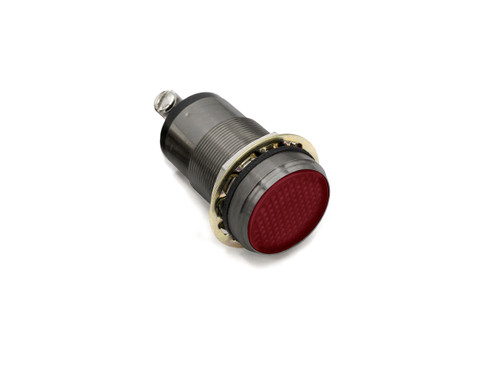

556 LED PMI 1" Flat Red, 72 VDC Black Nickel

  • Specifications

    Specifications
    Series 556
    Status Active
    Certifications RoHS w/ 6C exemption, IK07, IP66, NEMA 4X, UL 1598 (E156890)
    Mounting Hole Size 1.00" (25.4mm)
    Output Single Color
    Emitted Color Red
    LED Position Internal
    Lens Style Flat
    Lens Color Tinted, Diffused
    Voltage 72 VDC
    Resistor Internal Resistor Included
    Mounting Method Nut/Washer
    Max Panel Thickness .600" (15.24mm)
    Mounting Torque 40
    Mounting Torque Unit of Measure lb-in
    Polarity Sensitive Yes
    Typical Current (mA) 18.5
    Typical Intensity (mcd) 15000
    Termination Screw Terminals
    Termination Finish Hot Solder Dip
    Housing Material Metal
    Lens Material Transparent Polycarbonate
    Housing Finish Black Nickel
    Lock Washer Zinc w/ Yellow Chromate
    Nut Black Nickel
    Operating Temperature -30°C to +85°C (-22°F to +185°F)
    Storage Temperature -40°C to +100°C (-40F to +212°F)
