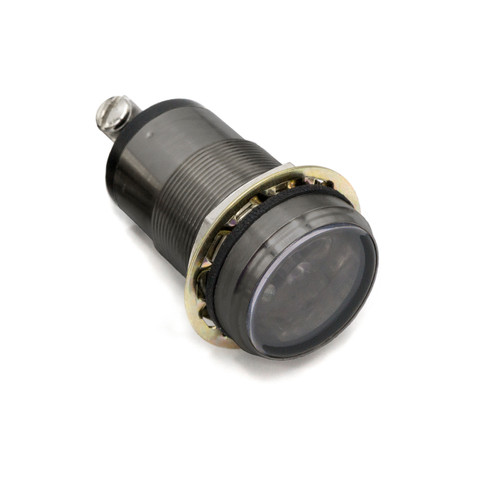

| Series |
556 |
| Certifications |
RoHS w/ 6C exemption, IK07, IP66, NEMA 4X, UL 1598 (E156890) |
| Status |
Active |
| Features |
Daylight Viewable |
| Mounting Hole Size |
1.00" (25.4mm) |
| Output |
Single Color |
| Emitted Color |
Green |
| LED Position |
Internal |
| Lens Style |
Flat |
| Lens Color |
Tinted, Diffused |
| Voltage |
12 VDC |
| Resistor |
Internal Resistor Included |
| Mounting Method |
Nut/Washer |
| Max Panel Thickness |
.600" (15.24mm) |
| Mounting Torque |
40 |
| Mounting Torque Unit of Measure |
lb-in |
| Polarity Sensitive |
Yes |
| Typical Current (mA) |
60 |
| Typical Intensity (mcd) |
37000 |
| Termination |
Screw Terminals |
| Termination Finish |
Hot Solder Dip |
| Housing Material |
Metal |
| Lens Material |
Transparent Polycarbonate |
| Lock Washer |
Zinc w/ Yellow Chromate |
| Operating Temperature |
-30°C to +85°C (-22°F to +185°F) |
| Storage Temperature |
-40°C to +100°C (-40F to +212°F) |
