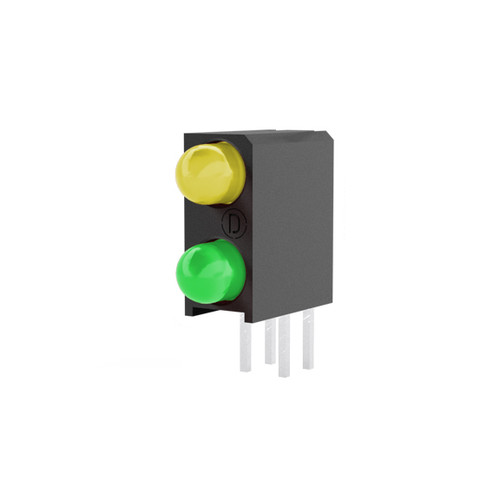

| Series |
553 |
| Certifications |
RoHS |
| Status |
Active |
| Lens Size (mm) |
3.0 |
| Lens Shape |
Round |
| Housing Configuration |
2 high x 1 wide |
| Mounting Orientation |
Right Angle |
| LED Position |
Protruding |
| Housing Form |
block |
| PCB to LED centerline |
.100"(2.54mm) |
| Overall Output |
BiColor |
| Emitted Color |
Yellow |
| Emitted Color 2 |
Green |
| Total #LEDs |
2 |
| LED Color Configuration |
YG |
| Lens Color |
Tinted, Diffused |
| Lens Color LED 2 |
Tinted, Diffused |
| Viewing Angle |
45 |
| Polarity |
Cathode Right |
| Test Current |
20 mA |
| Test Current LED 2 |
20 mA |
| Intensity (mcd) |
800 |
| Intensity (mcd) LED 2 |
1600 |
| Forward Voltage |
2 |
| Forward Voltage - Max |
2.5 |
| Forward Voltage LED 2 |
3.3 |
| Forward Voltage - Max LED 2 |
4 |
| Dominant Wavelength (nm) |
590 |
| Dominant Wavelength (nm) LED 2 |
525 |
| Reverse Current Intensity (uA) |
100 |
| Reverse Current Intensity (uA) LED 2 |
10 |
| Peak Forward Current (mA) |
90 |
| Peak Forward Current (mA) LED 2 |
90 |
| Derating mA/°C |
0.666 from 50 °C |
| Derating mA/°C LED 2 |
0.555 from 40 °C |
