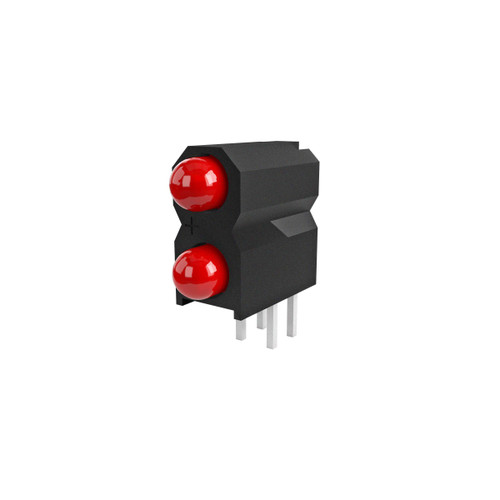

| Series |
553 |
| Certifications |
RoHS |
| Status |
Active |
| Lens Size (mm) |
3.0 |
| Lens Shape |
Round |
| Housing Configuration |
2 high x 1 wide |
| Mounting Orientation |
Right Angle |
| LED Position |
Protruding |
| Housing Form |
block |
| PCB to LED centerline |
0.100" (2.54mm) |
| Overall Output |
Single Color |
| Emitted Color |
Red |
| Emitted Color 2 |
Red |
| Total #LEDs |
2 |
| LED Color Configuration |
RR |
| Lens Color |
Tinted, Diffused |
| Lens Color LED 2 |
Tinted, Diffused |
| Viewing Angle |
60 |
| Features |
Low Current |
| Polarity |
Cathode Right |
| Test Current |
2 mA |
| Test Current LED 2 |
2 mA |
| Intensity (mcd) |
2.5 |
| Intensity (mcd) LED 2 |
2.5 |
| Forward Voltage |
1.7 |
| Forward Voltage - Max |
2.2 |
| Forward Voltage LED 2 |
1.7 |
| Forward Voltage - Max LED 2 |
2.2 |
| Peak Wavelength (nm) |
635 |
| Peak Wavelength (nm) LED 2 |
635 |
| Dominant Wavelength (nm) |
623 |
| Dominant Wavelength (nm) LED 2 |
623 |
| Reverse Current Intensity (uA) |
10 |
| Reverse Current Intensity (uA) LED 2 |
10 |
| Power Dissipation (mW) |
20 |
| Power Dissipation - LED 2 (mW) |
20 |
| Continuous Forward Current (mA) |
7 |
| Continuous Forward Current (mA) LED 2 |
7 |
| Derating mA/°C |
0.7 from 90 °C |
| Derating mA/°C LED 2 |
0.7 from 90 °C |
| Operating Temperature |
-55°C to +100°C (-67°F to +212°F) |
| Storage Temperature |
-55°C to +100°C (-67°F to +212°F) |
| Solder Max Time/Temp °C |
5 sec @ 260 °C |
