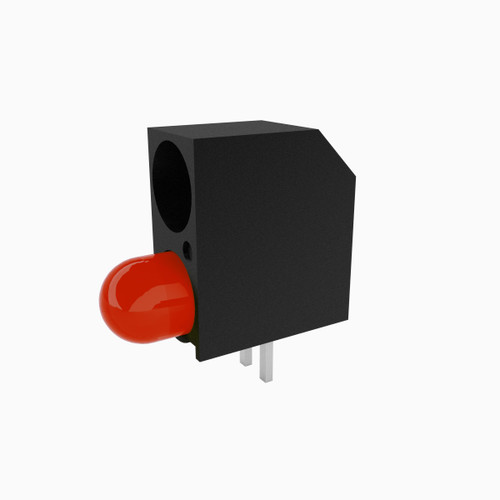

Series |
552 |
Certifications |
RoHS |
Status |
Active |
Lens Size (mm) |
5.0 |
Lens Shape |
Round |
Housing Configuration |
2 high x 1 wide |
Mounting Orientation |
Right Angle |
LED Position |
Protruding |
Housing Form |
sloped |
PCB to LED centerline |
.125(3.18) |
Overall Output |
Single Color |
Emitted Color 2 |
Red |
Total #LEDs |
1 |
LED Color Configuration |
X/R |
Lens Color |
Tinted, Diffused |
Viewing Angle |
50 |
Polarity |
Cathode Right |
Test Current |
10 mA Int / 20 mA Voltage |
Intensity (mcd) LED 2 |
6.3 |
Forward Voltage LED 2 |
2.2 |
Forward Voltage - Max LED 2 |
2.55 |
Peak Wavelength (nm) LED 2 |
650 |
Reverse Current Intensity (uA) LED 2 |
10 |
Power Dissipation - LED 2 (mW) |
60 |
Continuous Forward Current (mA) LED 2 |
20 |
Peak Forward Current (mA) LED 2 |
60 |
Operating Temperature |
-25°C to +85°C (-13°F to +185°F) |
Storage Temperature |
-30°C to +100°C (-22°F to +212°F) |
Solder Max Time/Temp °C |
5 sec @ 260 °C |
