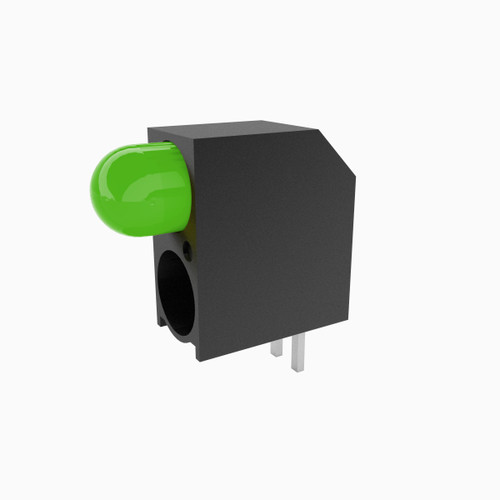

| Series |
552 |
| Certifications |
RoHS |
| Status |
Active |
| Lens Size (mm) |
5.0 |
| Lens Shape |
Round |
| Housing Configuration |
2 high x 1 wide |
| Mounting Orientation |
Right Angle |
| LED Position |
Protruding |
| Housing Form |
sloped |
| PCB to LED centerline |
.125(3.18) |
| Overall Output |
Single Color |
| Emitted Color |
Green |
| Total #LEDs |
1 |
| LED Color Configuration |
G/X |
| Lens Color |
Tinted, Diffused |
| Viewing Angle |
60 |
| Polarity |
Cathode Right |
| Test Current |
10 mA Int / 20 mA Voltage |
| Intensity (mcd) |
10 |
| Intensity (mcd) LED 2 |
6.3 |
| Forward Voltage |
2.1 |
| Forward Voltage - Max |
3 |
| Peak Wavelength (nm) |
563 |
| Reverse Current Intensity (uA) |
10 |
| Power Dissipation (mW) |
75 |
| Continuous Forward Current (mA) |
25 |
| Peak Forward Current (mA) |
80 |
| Operating Temperature |
-25°C to +85°C (-13°F to +185°F) |
| Storage Temperature |
-30°C to +100°C (-22°F to +212°F) |
| Solder Max Time/Temp °C |
5 sec @ 260 °C |
