551-1207-809F

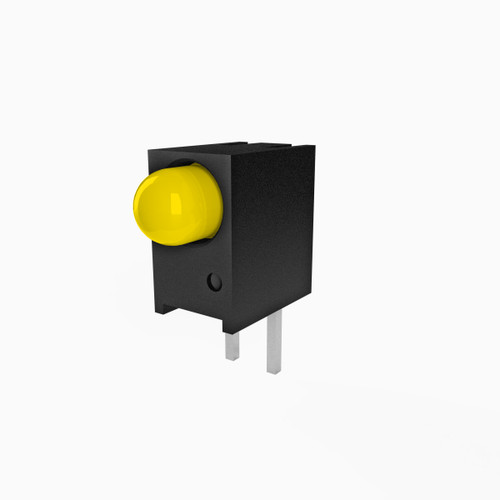

551 Series 3 mm CBI Y 2 mA .110" Lead Length

  • Specifications

    Specifications
    Series 551
    Certifications RoHS
    Status Active
    Lens Size (mm) 3.0
    Lens Shape Round
    Housing Configuration 1 x 1
    Mounting Orientation Right Angle
    LED Position Protruding
    Housing Form block
    PCB to LED centerline .200" (5.08mm)
    Overall Output Single Color
    Emitted Color Yellow
    Total #LEDs 1
    LED Color Configuration Y
    Lens Color Tinted, Diffused
    Viewing Angle 60
    Features Low Current
    Polarity Cathode Right
    Test Current 2 mA
    Intensity (mcd) 1.6
    Forward Voltage 1.8
    Forward Voltage - Max 2.7
    Peak Wavelength (nm) 585
    Reverse Current Intensity (uA) 10
    Power Dissipation (mW) 20
    Continuous Forward Current (mA) 7
    Peak Forward Current (mA) 500
    Derating mA/°C 0.7 from 90 °C
    Operating Temperature -55°C to +100°C (-67°F to +212°F)
    Storage Temperature -55°C to +100°C (-67°F to +212°F)
    Solder Max Time/Temp °C 5 sec @ 260 °C
  • Selector Guide/Catalog Dialight CBI Selector Guide
    C-Drawing C17721.pdf
    3D STP File 551XX07F.stp
