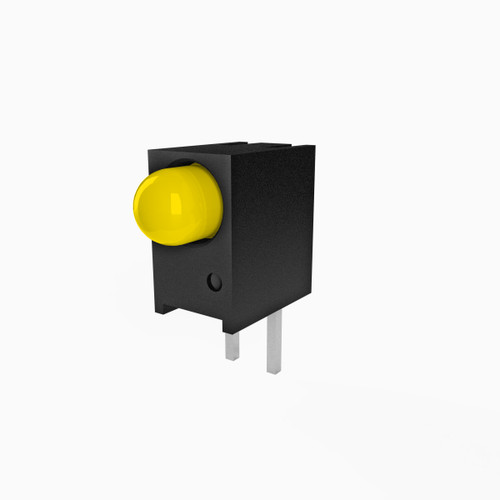

| Series |
551 |
| Certifications |
RoHS |
| Status |
Active |
| Lens Size (mm) |
3.0 |
| Lens Shape |
Round |
| Housing Configuration |
1 x 1 |
| Mounting Orientation |
Right Angle |
| LED Position |
Protruding |
| Housing Form |
block |
| PCB to LED centerline |
.200" (5.08mm) |
| Overall Output |
Single Color |
| Emitted Color |
Yellow |
| Total #LEDs |
1 |
| LED Color Configuration |
Y |
| Lens Color |
Tinted, Diffused |
| Viewing Angle |
60 |
| Polarity |
Cathode Right |
| Test Current |
10 mA |
| Intensity (mcd) |
8.7 |
| Forward Voltage |
2.1 |
| Forward Voltage - Max |
2.6 |
| Peak Wavelength (nm) |
585 |
| Reverse Current Intensity (uA) |
100 |
| Power Dissipation (mW) |
60 |
| Continuous Forward Current (mA) |
20 |
| Peak Forward Current (mA) |
60 |
| Derating mA/°C |
0.25 from 50 °C |
| Operating Temperature |
-55°C to +100°C (-67°F to +212°F) |
| Storage Temperature |
-55°C to +100°C (-67°F to +212°F) |
| Solder Max Time/Temp °C |
5 sec @ 260 °C |
