550-1107F

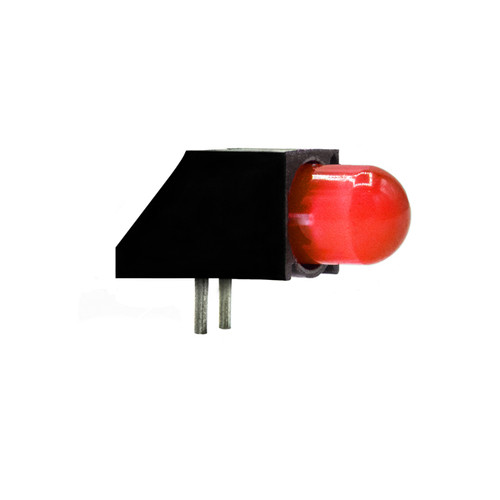

550 Series CBI 5mm Sloped 1x1 R 2mA

  • Specifications

    Specifications
    Series 550
    Status Active
    Lens Size (mm) 5.0
    Lens Shape Round
    Housing Configuration 1 x 1
    Mounting Orientation Right Angle
    LED Position Protruding
    Housing Form sloped
    Overall Output Single Color
    Emitted Color Red
    Total #LEDs 1
    LED Color Configuration R
    Lens Color Tinted, Diffused
    Viewing Angle 50
    Features Low Current
    Test Current 2 mA
    Intensity (mcd) 2.3
    Forward Voltage 1.7
    Forward Voltage - Max 2
    Peak Wavelength (nm) 635
    Dominant Wavelength (nm) 626
    Reverse Current Intensity (uA) 50
    Power Dissipation (mW) 14
    Continuous Forward Current (mA) 7
    Peak Forward Current (mA) 500
    Derating mA/°C 0
    Operating Temperature -40°C to +85°C (-40°F to +185°F)
    Storage Temperature -40°C to +100°C (-40F to +212°F)
    Solder Max Time/Temp °C 5 sec @ 260 °C
    Certifications RoHS
