550-1507F

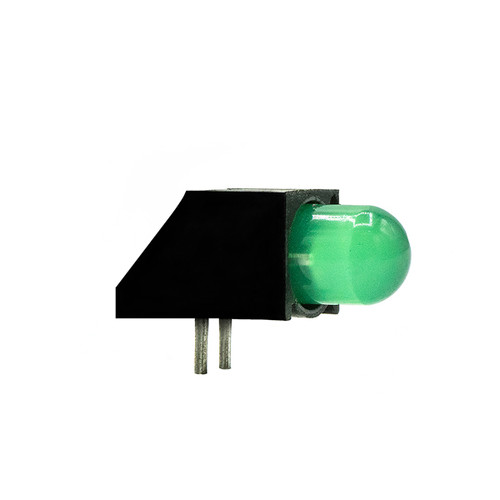

550 Series CBI, 5mm, GREEN TINTED NON-DIFFUSED

  • Specifications

    Specifications
    Series 550
    Certifications RoHS
    Status Active
    Lens Size (mm) 5.0
    Lens Shape Round
    Housing Configuration 1 x 1
    Mounting Orientation Right Angle
    LED Position Protruding
    Housing Form sloped
    Overall Output Single Color
    Emitted Color Green
    Total #LEDs 1
    Lens Color Tinted, Non-Diffused
    Viewing Angle 24
    Test Current 10 mA
    Intensity (mcd) 70
    Forward Voltage - Max 3.0
    Peak Wavelength (nm) 565
    Reverse Current Intensity (uA) 100
    Power Dissipation (mW) 135
    Continuous Forward Current (mA) 30
    Peak Forward Current (mA) 90
    Operating Temperature -20°C to +100°C (-4°F to +212°F)
    Storage Temperature -55°C to +100°C (-67°F to +212°F)
    Solder Max Time/Temp °C 5 sec @ 260 °C
  • C-Drawing C17697D.pdf
    Selector Guide/Catalog Dialight CBI Selector Guide
