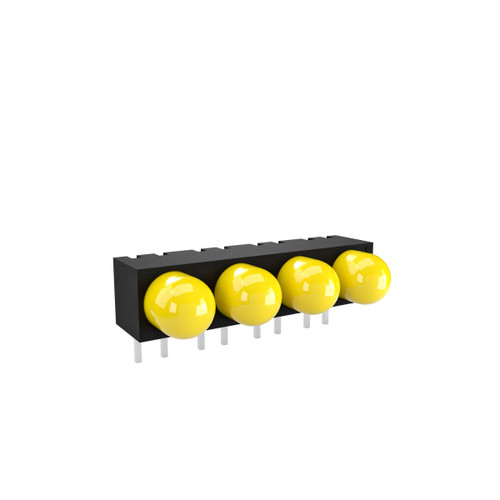

| Series |
550 |
| Certifications |
RoHS |
| Status |
Active |
| Lens Size (mm) |
5.0 |
| Lens Shape |
Round |
| Housing Configuration |
1 high x 4 wide |
| Mounting Orientation |
Right Angle |
| LED Position |
Protruding |
| Housing Form |
block |
| PCB to LED centerline |
0.118" (2.98mm) |
| Emitted Color |
Yellow |
| Emitted Color 2 |
Yellow |
| Emitted Color 3 |
Yellow |
| Emitted Color 4 |
Yellow |
| LED Color Configuration |
Y/Y/Y/Y |
| Lens Color |
Non-Tinted, Diffused |
| Viewing Angle |
60 |
| Polarity |
Cathode Right |
| Test Current |
10 mA |
| Intensity (mcd) |
12.6 |
| Intensity (mcd) LED 2 |
12.6 |
| Intensity (mcd) LED 3 |
12.6 |
| Intensity (mcd) LED 4 |
12.6 |
| Forward Voltage |
2.1 |
| Forward Voltage - Max |
2.6 |
| Forward Voltage LED 2 |
2.1 |
| Forward Voltage - Max LED 2 |
2.6 |
| Forward Voltage LED 3 |
2.1 |
| Forward Voltage - Max LED 3 |
2.6 |
| Forward Voltage LED 4 |
2.1 |
| Forward Voltage - Max LED 4 |
2.6 |
| Peak Wavelength (nm) |
585 |
| Peak Wavelength (nm) LED 2 |
585 |
| Peak Wavelength (nm) LED 3 |
585 |
| Peak Wavelength (nm) LED 4 |
585 |
| Dominant Wavelength (nm) |
588 |
| Dominant Wavelength (nm) LED 2 |
588 |
| Dominant Wavelength (nm) LED 3 |
588 |
| Reverse Current Intensity (uA) |
100 |
| Reverse Current Intensity (uA) LED 2 |
100 |
| Reverse Current Intensity (uA) LED 3 |
100 |
| Reverse Current Intensity (uA) LED 4 |
100 |
| Power Dissipation (mW) |
60 |
| Power Dissipation - LED 2 (mW) |
60 |
| Power Dissipation - LED 3 (mW) |
60 |
| Power Dissipation - LED 4 (mW) |
60 |
| Continuous Forward Current (mA) |
20 |
| Continuous Forward Current (mA) LED 2 |
20 |
| Continuous Forward Current (mA) LED 3 |
20 |
| Continuous Forward Current (mA) LED 4 |
20 |
| Peak Forward Current (mA) |
80 |
| Peak Forward Current (mA) LED 2 |
80 |
| Peak Forward Current (mA) LED 3 |
80 |
| Peak Forward Current (mA) LED 4 |
80 |
| Operating Temperature |
-55°C to +100°C (-67°F to +212°F) |
| Storage Temperature |
-55°C to +100°C (-67°F to +212°F) |
| Solder Max Time/Temp °C |
5 sec @ 260 °C |
