550-0805F

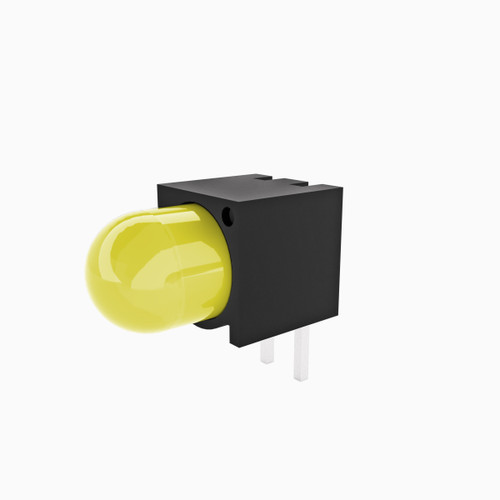

550 Series 5 mm CBI Y 5 Volt Square Back Housing

  • Specifications

    Specifications
    Series 550
    Certifications RoHS
    Status Active
    Lens Size (mm) 5.0
    Lens Shape Round
    Housing Configuration 1 x 1
    Mounting Orientation Right Angle
    LED Position Protruding
    Housing Form block
    PCB to LED centerline .118 (2.98)
    Overall Output Single Color
    Emitted Color Yellow
    Total #LEDs 1
    LED Color Configuration Y
    Lens Color Non-Tinted, Diffused
    Test Current 5V
    Peak Wavelength (nm) 583
    Reverse Current Intensity (uA) 100
    Solder Max Time/Temp °C 5 sec @ 260 °C
    Viewing Angle 60
    Intensity (mcd) 8
    Operating Temperature -40°C to +85°C (-40°F to +185°F)
    Storage Temperature -55°C to +100°C (-67°F to +212°F)
  • C-Drawing C17264.pdf
    Selector Guide/Catalog Dialight CBI Selector Guide
    3D STP File 550XX05F.stp
    Request Compliance Documentation Request Compliance Documentation
