550-1207F

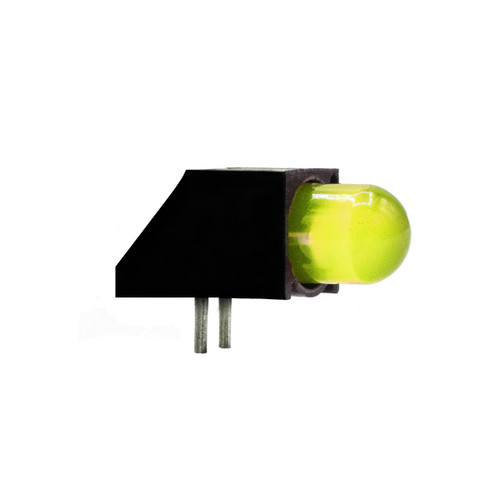

550 Series 5 mm CBI Y 2 mA Slope-back Housing

  • Specifications

    Specifications
    Series 550
    Certifications RoHS
    Status Active
    Lens Size (mm) 5.0
    Lens Shape Round
    Housing Configuration 1 x 1
    Mounting Orientation Right Angle
    LED Position Protruding
    Housing Form sloped
    Overall Output Single Color
    Emitted Color Yellow
    Total #LEDs 1
    LED Color Configuration Y
    Lens Color Tinted, Diffused
    Viewing Angle 50
    Test Current 2 mA
    Intensity (mcd) 1.8
    Forward Voltage 1.9
    Forward Voltage - Max 2.7
    Peak Wavelength (nm) 583
    Reverse Current Intensity (uA) 50
    Power Dissipation (mW) 36
    Continuous Forward Current (mA) 7
    Peak Forward Current (mA) 500
    Derating mA/°C 1.0 from 25 °C
    Operating Temperature -55°C to +100°C (-67°F to +212°F)
    Storage Temperature -55°C to +100°C (-67°F to +212°F)
    Solder Max Time/Temp °C 5 sec @ 260 °C
  • C-Drawing C-17400
    Selector Guide/Catalog Dialight CBI Selector Guide
    3D STP File 550XX07F.stp
