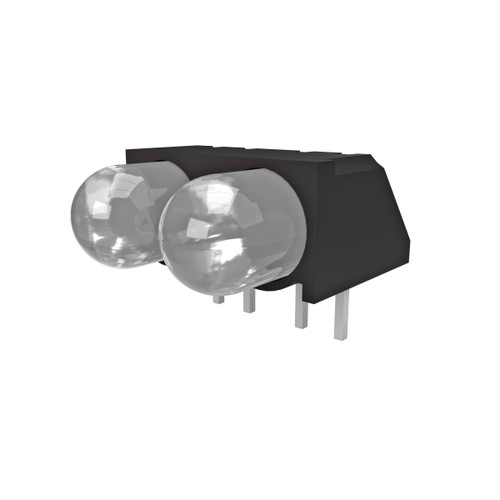

550 Series 5 mm CBI R Water Clear Slope-back Dual-Block

  • Specifications

    Series 550
    Certifications RoHS
    Status Active
    Lens Size (mm) 5.0
    Lens Shape Round
    Housing Configuration 1 high x 2 wide
    Mounting Orientation Right Angle
    LED Position Protruding
    Housing Form sloped
    PCB to LED centerline 0.118" (2.98mm)
    Overall Output Single Color
    Emitted Color Red
    Emitted Color 2 Red
    Total #LEDs 2
    LED Color Configuration RR
    Lens Color Non-Tinted, Non-Diffused
    Viewing Angle 24
    Polarity Cathode Right
    Test Current 20 mA
    Intensity (mcd) 125
    Forward Voltage 2.2
    Forward Voltage - Max 3
    Peak Wavelength (nm) 635
    Reverse Current Intensity (uA) 100
    Power Dissipation (mW) 135
    Continuous Forward Current (mA) 30
    Peak Forward Current (mA) 500
    Operating Temperature -55°C to +100°C (-67°F to +212°F)
    Storage Temperature -55°C to +100°C (-67°F to +212°F)
    Solder Max Time/Temp °C 5 sec @ 260 °C
  • Selector Guide/Catalog Dialight CBI Selector Guide
    C-Drawing C18052.pdf
    Request Compliance Documentation Request Compliance Documentation
