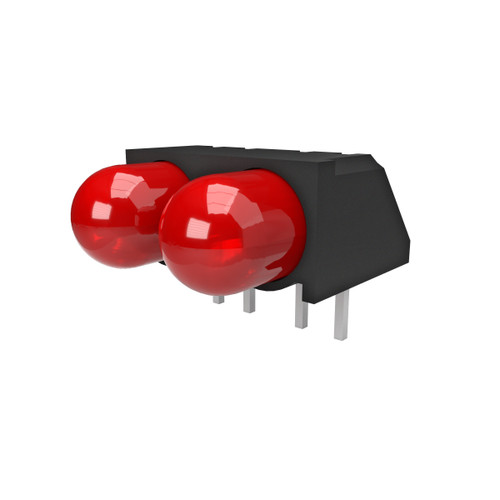

| Series |
550 |
| Certifications |
RoHS |
| Status |
Active |
| Lens Size (mm) |
5.0 |
| Lens Shape |
Round |
| Housing Configuration |
1 high x 2 wide |
| Mounting Orientation |
Right Angle |
| LED Position |
Protruding |
| Housing Form |
sloped |
| PCB to LED centerline |
0.118" (2.98mm) |
| Overall Output |
Single Color |
| Emitted Color |
Red |
| Emitted Color 2 |
Red |
| Total #LEDs |
2 |
| LED Color Configuration |
RR |
| Lens Color |
Non-Tinted, Diffused |
| Viewing Angle |
60 |
| Polarity |
Cathode Right |
| Test Current |
5V |
| Peak Wavelength (nm) |
635 |
| Reverse Current Intensity (uA) |
100 |
| Operating Temperature |
-40°C to +85°C (-40°F to +185°F) |
| Storage Temperature |
-40°C to +100°C (-40F to +212°F) |
| Solder Max Time/Temp °C |
5 sec @ 260 °C |
