550-0408F

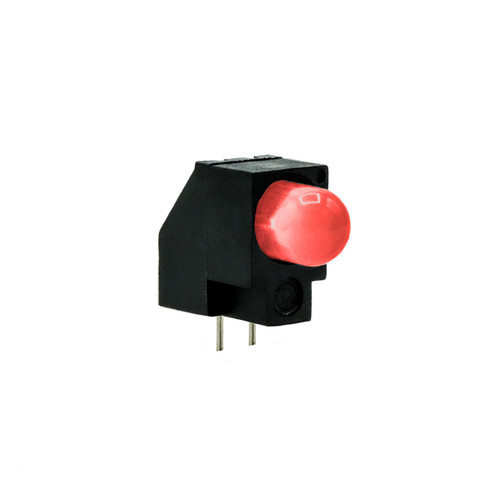

550 Series 5 mm CBI R .250 LED C/L

  • Specifications

    Specifications
    Series 550
    Certifications RoHS
    Status Active
    Lens Size (mm) 5.0
    Lens Shape Round
    Housing Configuration 1 x 1
    Mounting Orientation Right Angle
    LED Position Protruding
    Housing Form sloped
    PCB to LED centerline .250(6.35)
    Overall Output Single Color
    Emitted Color Red
    Total #LEDs 1
    LED Color Configuration R
    Lens Color Tinted, Diffused
    Viewing Angle 60
    Polarity Cathode Right
    Test Current 10 mA Int / 20 mA Voltage
    Intensity (mcd) 60
    Forward Voltage 2
    Forward Voltage - Max 2.6
    Peak Wavelength (nm) 635
    Dominant Wavelength (nm) 623
    Reverse Current Intensity (uA) 100
    Power Dissipation (mW) 100
    Peak Forward Current (mA) 120
    Operating Temperature -55°C to +100°C (-67°F to +212°F)
    Storage Temperature -55°C to +100°C (-67°F to +212°F)
    Solder Max Time/Temp °C 5 sec @ 260 °C
  • C-Drawing C17673.pdf
    Selector Guide/Catalog Dialight CBI Selector Guide
    3D STP File 550xx08f.stp
    Request Compliance Documentation Request Compliance Documentation
