550-1304-004F

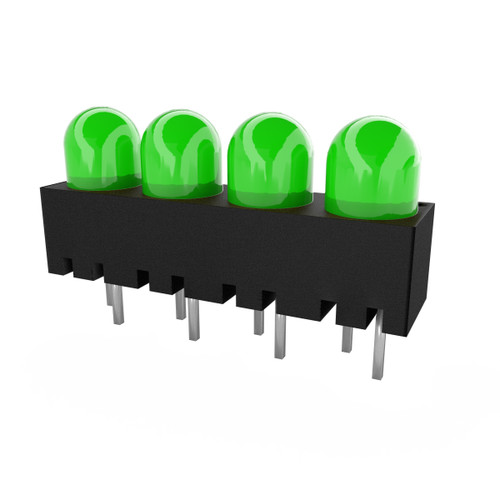

550 Series 5 mm CBI G 2 mA Vertical Quad-Block

  • Specifications

    Specifications
    Series 550
    Certifications RoHS
    Status Active
    Lens Size (mm) 5.0
    Lens Shape Round
    Housing Configuration 1 x 4 vertical
    Mounting Orientation Vertical
    LED Position Protruding
    Housing Form block
    Overall Output Single Color
    Emitted Color Green
    Lens Color Tinted, Diffused
    Test Current 2 mA
    Forward Voltage - Max 2.2
    Peak Wavelength (nm) 565
    Solder Max Time/Temp °C 5 sec @ 260 °C
  • Request Compliance Documentation Request Compliance Documentation
    C-Drawing C17445.pdf
    Selector Guide/Catalog Dialight CBI Selector Guide
