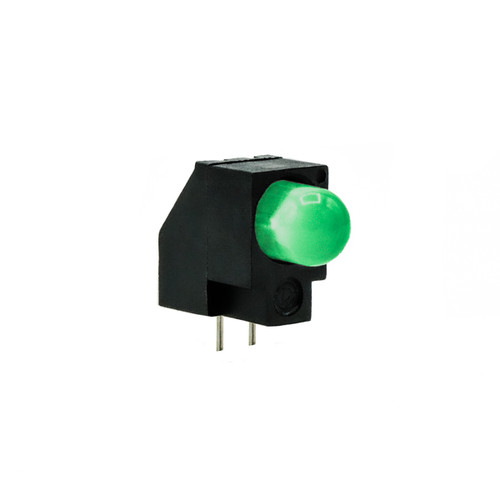

550 Series 5 mm CBI G 10 mcd .250 LED C/L

  • Specifications

    Series 550
    Certifications RoHS
    Status Active
    Lens Size (mm) 5.0
    Lens Shape Round
    Housing Configuration 1 x 1
    Mounting Orientation Right Angle
    LED Position Protruding
    Housing Form sloped
    PCB to LED centerline .250(6.35)
    Overall Output Single Color
    Emitted Color Green
    Total #LEDs 1
    LED Color Configuration G
    Lens Color Tinted, Diffused
    Viewing Angle 65
    Polarity Cathode Right
    Test Current 10 mA Int / 10 mA Voltage
    Intensity (mcd) 10
    Forward Voltage 2.1
    Forward Voltage - Max 3
    Peak Wavelength (nm) 563
    Power Dissipation (mW) 75
    Peak Forward Current (mA) 60
    Operating Temperature -25°C to +85°C (-13°F to +185°F)
    Storage Temperature -30°C to +100°C (-22°F to +212°F)
    Solder Max Time/Temp °C 5 sec @ 260 °C
  • Request Compliance Documentation Request Compliance Documentation
    C-Drawing C17673.pdf
    Selector Guide/Catalog Dialight CBI Selector Guide
    3D STP File 550xx08f.stp
