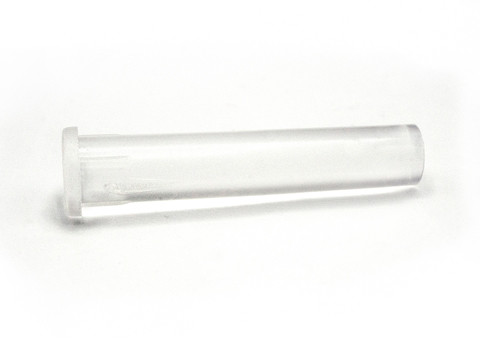

| Series |
515 |
| Certifications |
RoHS |
| Status |
Active |
| Light Pipe Material |
Rigid |
| Mounting Type |
Panel Mount |
| Viewing Direction from PCB |
Vertical |
| Lens Shape |
Round |
| Lens Dimension HxW - inch(mm) |
0.197" (5.0mm) dia. |
| Mounting Method |
Press-fit |
| Lens Optics |
Flat |
| Lens Finish |
Diffused |
| Levels |
Single Level |
| Arrays |
Single |
| Light Shield |
No Shield |
| Overall length - inch(mm) |
0.750" (19.05mm) |
| Overall width - inch(mm) |
0.197" (5.00 mm) |
| Overall height from PCB - inch(mm) |
0.800" (20.32mm) + LED height |
| Minimum Panel Thickness - inch(mm) |
0.040" (1.00 mm) |
| Operating Temperature |
-40°C to +100°C (-40F to +212°F) |
| Storage Temperature |
-40°C to +100°C (-40F to +212°F) |
