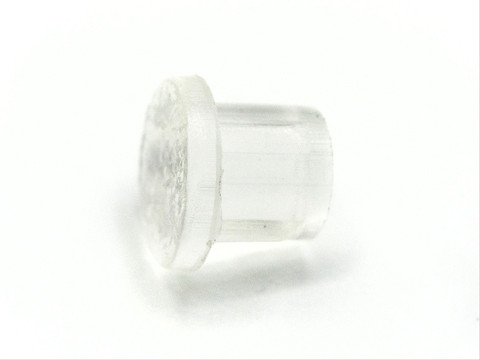

515 Optopipe® Light Pipe, Single VPM 5mm Rnd Flat Diff Lens, Press-fit, 0.125" L

  • Specifications

    Series 515
    Certifications RoHS
    Status Active
    Light Pipe Material Rigid
    Mounting Type Panel Mount
    Viewing Direction from PCB Vertical
    Lens Shape Round
    Lens Dimension HxW - inch(mm) 0.197" (5.0mm) dia.
    Mounting Method Press-fit
    Lens Optics Flat
    Lens Finish Diffused
    Levels Single Level
    Arrays Single
    Light Shield No Shield
    Overall length - inch(mm) 0.125" (3.18mm)
    Overall width - inch(mm) 0.197" (5mm)
    Overall height from PCB - inch(mm) 0.175" + LED height
    Minimum Panel Thickness - inch(mm) 0.040" (1 mm)
    Mounting Pin Size 0.156" +/-0.002 (3.96mm +/-0.051)
    Operating Temperature -40°C to +100°C (-40F to +212°F)
    Storage Temperature -40°C to +100°C (-40F to +212°F)
