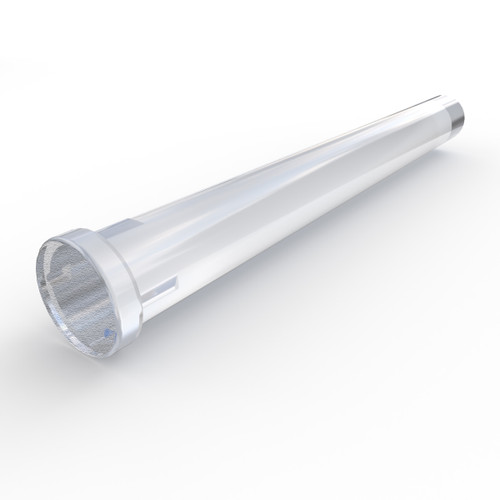

515 Optopipe® Light Pipe, Single VPM 3mm Rnd Flat Diff Lens, Press-fit, 1.20" L

  • Specifications

    Series 515
    Certifications RoHS
    Status Active
    Light Pipe Material Rigid
    Mounting Type Panel Mount
    Viewing Direction from PCB Vertical
    Lens Shape Round
    Lens Dimension HxW - inch(mm) 0.130" (3.3mm) dia.
    Mounting Method Press-fit
    Lens Optics Flat
    Lens Finish Diffused
    Levels Single Level
    Arrays Single
    Light Shield No Shield
    Overall length - inch(mm) 1.20" (30.48mm)
    Overall width - inch(mm) 0.130" (3.3mm)
    Overall height from PCB - inch(mm) 1.25" + LED height
    Minimum Panel Thickness - inch(mm) 0.030" (0.762 mm)
    Mounting Pin Size 0.115" +.003, -.002 (2.92mm +.07, -.05)
    Operating Temperature -30°C to +100°C (-22°F to +212°F)
    Storage Temperature -30°C to +100°C (-22°F to +212°F)
