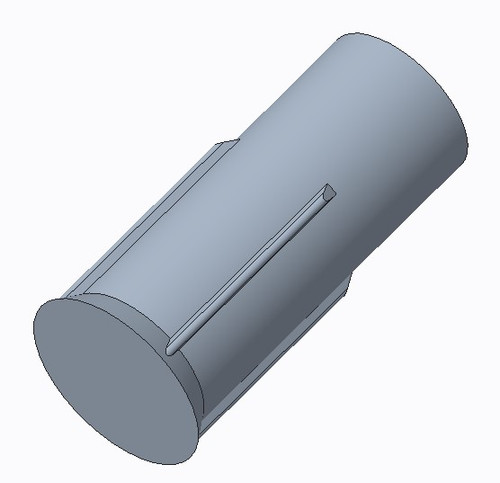

515 Optopipe® Light Pipe, Single VPM 2.25mm Rnd Countersink, Press-fit, 0.188" L

  • Specifications

    Specifications
    Series 515
    Certifications RoHS
    Status Active
    Light Pipe Material Rigid
    Mounting Type Panel Mount
    Viewing Direction from PCB Vertical
    Lens Shape Round
    Lens Dimension HxW - inch(mm) 0.089" (2.25mm)
    Mounting Method Press-fit
    Lens Optics Countersink
    Lens Finish Diffused
    Levels Single Level
    Arrays Single
    Light Shield No Shield
    Overall length - inch(mm) 0.188" (4.77mm)
    Overall width - inch(mm) 0.089" (2.26mm)
    Minimum Panel Thickness - inch(mm) 0.050 ± 0.005" (1.27 ± 0.12mm)
    Operating Temperature -30°C to +100°C (-22°F to +212°F)
    Storage Temperature -30°C to +100°C (-22°F to +212°F)
