515-1361-0900F

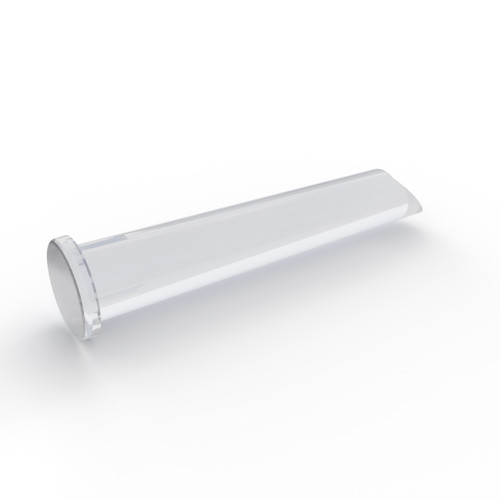

515 Optopipe® Light Pipe, Single RA PM 5mm Rnd Flat Diff Lens, Press-fit, 0.900" L

  • Specifications

    Specifications
    Series 515
    Certifications RoHS
    Status Active
    Light Pipe Material Rigid
    Mounting Type Panel Mount
    Viewing Direction from PCB Right Angle
    Lens Shape Round
    Lens Dimension HxW - inch(mm) 0.197" (5.0mm) dia.
    Mounting Method Press-fit
    Lens Optics Flat
    Lens Finish Diffused
    Levels Single Level
    Arrays Single
    Light Shield No Shield
    PCB to centerline of lens - inch(mm) 0.165" (4.19mm)
    Overall length - inch(mm) 0.900" (22.86mm)
    Overall width - inch(mm) .197" (5mm)
    Minimum Panel Thickness - inch(mm) 0.063" (1.60mm)
    Mounting Pin Size 0.156" +/-0.002 (3.96mm +/-0.05)
    Operating Temperature -40°C to +100°C (-40F to +212°F)
    Storage Temperature -40°C to +100°C (-40F to +212°F)
  • Datasheet Dialight_datasheet_515_RA_VPM_5mm.pdf
    Selector Guide/Catalog Lightpipe_Selector_Guide_D.pdf
    3D STP File 51513610900F.stp
