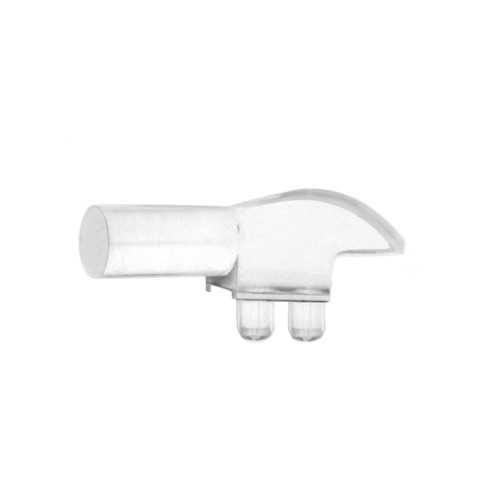

515 Optopipe® Light Pipe, Single 3.5mm Rnd Convex Diff Lens, Press-fit, 7.37mm length

  • Specifications

    Series 515
    Certifications RoHS
    Status Active
    Light Pipe Material Rigid
    Mounting Type PCB Mount
    Viewing Direction from PCB Right Angle
    Lens Shape Round
    Lens Dimension HxW - inch(mm) 0.140" (3.56mm) dia.
    Mounting Method Press-fit
    Lens Optics Convex
    Lens Finish Diffused
    Levels Single Level
    Arrays Single
    Light Shield No Shield
    PCB to centerline of lens - inch(mm) 0.106
    Center to center of lenses (multi array) - inch(mm) 0.2
    Pitch btw adjacent LPs - inch(mm) 0.2
    Overall length - inch(mm) 0.65" (16.51mm)
    Overall width - inch(mm) 0.14
    Overall height from PCB - inch(mm) 0.21
    Operating Temperature -30°C to +100°C (-22°F to +212°F)
    Storage Temperature -30°C to +100°C (-22°F to +212°F)
  • Selector Guide/Catalog Lightpipe_Selector_Guide_D.pdf
    C-Drawing C17650.pdf
    3D STP File 5151049F.stp
    Request Compliance Documentation Request Compliance Documentation
