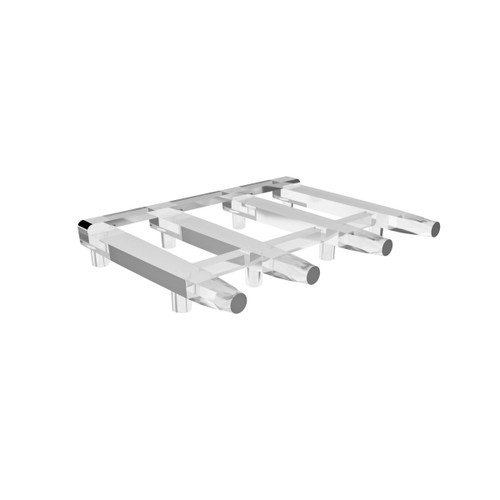

| Series |
515 |
| Certifications |
RoHS |
| Status |
Active |
| Light Pipe Material |
Rigid |
| Mounting Type |
PCB Mount |
| Viewing Direction from PCB |
Right Angle |
| Lens Shape |
Round |
| Lens Dimension HxW - inch(mm) |
0.050" (1.27mm) |
| Mounting Method |
Press-fit |
| Lens Optics |
Flat |
| Lens Finish |
Clear |
| Levels |
Single Level |
| Arrays |
4 wide |
| Light Shield |
No Shield |
| PCB to centerline of lens - inch(mm) |
0.030" (0.76mm) |
| Center to center of lenses (multi array) - inch(mm) |
0.250" (6.35mm) |
| Overall length - inch(mm) |
0.690" (17.53mm) |
| Overall width - inch(mm) |
0.901" (22.89mm) |
| Overall height from PCB - inch(mm) |
0.075" (1.91mm) |
| Mounting Pin Size |
0.062" (1.57mm) |
| Operating Temperature |
-30°C to +100°C (-22°F to +212°F) |
| Storage Temperature |
-30°C to +100°C (-22°F to +212°F) |
