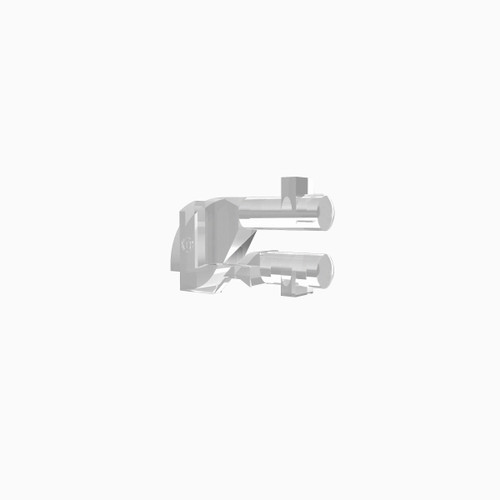

Specifications
Specifications
| Series | 515 |
| Certifications | RoHS |
| Status | Active |
| Light Pipe Material | Rigid |
| Mounting Type | Panel Mount |
| Viewing Direction from PCB | Right Angle |
| Lens Shape | Round |
| Lens Dimension HxW - inch(mm) | 0.120" (3mm) dia. |
| Mounting Method | Press-fit |
| Lens Optics | Convex |
| Lens Finish | Diffused |
| Levels | BiLevel |
| Arrays | Single |
| Light Shield | No Shield |
| Overall length - inch(mm) | 0.704" (17.88mm) |
| Operating Temperature | -30°C to +100°C (-22°F to +212°F) |
| Storage Temperature | -30°C to +100°C (-22°F to +212°F) |
| C-Drawing | C17382.pdf |
| Selector Guide/Catalog | Lightpipe_Selector_Guide_D.pdf |
| 3D STP File | 5151156F.stp |
