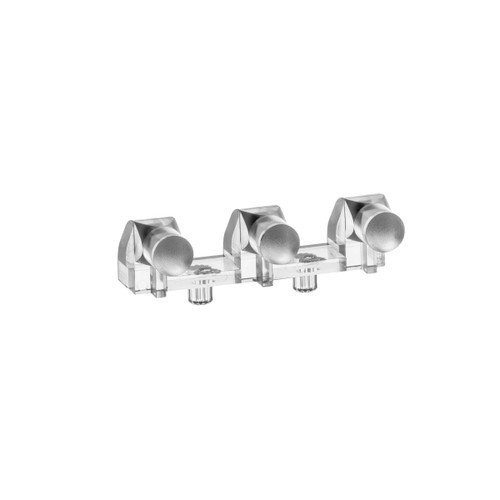

| Series |
515 |
| Certifications |
RoHS |
| Status |
Active |
| Light Pipe Material |
Rigid |
| Mounting Type |
PCB Mount |
| Viewing Direction from PCB |
Right Angle |
| Lens Shape |
Round |
| Lens Dimension HxW - inch(mm) |
0.190" (4.826mm) dia. |
| Mounting Method |
Press-fit |
| Lens Optics |
Convex |
| Lens Finish |
Diffused |
| Levels |
Single Level |
| Arrays |
3 wide |
| Light Shield |
No Shield |
| PCB to centerline of lens - inch(mm) |
0.250" (6.35mm) |
| Center to center of lenses (multi array) - inch(mm) |
0.500" (12.70mm) |
| Pitch btw adjacent LPs - inch(mm) |
0.500" (12.70mm) |
| Overall length - inch(mm) |
0.575" (14.605mm) |
| Overall width - inch(mm) |
1.190" (30.226mm) |
| Overall height from PCB - inch(mm) |
0.345" (8.763mm) |
| Minimum Panel Thickness - inch(mm) |
0.060" (1.52mm) |
| Mounting Pin Size |
0.200" (5.08mm) |
| Mounting Pin Pitch |
0.500" (12.70mm) |
| Operating Temperature |
-30°C to +100°C (-22°F to +212°F) |
| Storage Temperature |
-30°C to +100°C (-22°F to +212°F) |
