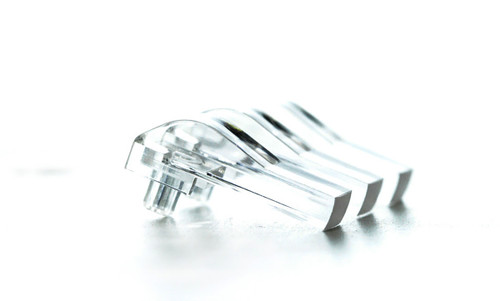

| Series |
515 |
| Certifications |
RoHS |
| Status |
Active |
| Light Pipe Material |
Rigid |
| Mounting Type |
PCB Mount |
| Viewing Direction from PCB |
Right Angle |
| Lens Shape |
Rectangular |
| Lens Dimension HxW - inch(mm) |
0.118" (3mm) x 0.216" (5.49mm) |
| Mounting Method |
Press-fit |
| Lens Optics |
Convex |
| Lens Finish |
Diffused |
| Levels |
Single Level |
| Arrays |
3 wide |
| Light Shield |
No Shield |
| PCB to centerline of lens - inch(mm) |
0.125" (3.175mm) |
| Center to center of lenses (multi array) - inch(mm) |
0.420" +/-.003 (10.668mm +/-.076) |
| Pitch btw adjacent LPs - inch(mm) |
0.420" +/-.005 (10.668mm +/-.127) |
| Overall length - inch(mm) |
0.719" (18.263mm) |
| Overall width - inch(mm) |
1.056" (26.82mm) |
| Overall height from PCB - inch(mm) |
0.245" (6.223mm) |
| Minimum Panel Thickness - inch(mm) |
0.060" (1.52mm) |
| Mounting Pin Size |
.230" +/-.005 x .130"+/-.005 |
| Mounting Pin Pitch |
0.420" +/-.003 (10.668mm +/-.076) |
| Operating Temperature |
-30°C to +100°C (-22°F to +212°F) |
| Storage Temperature |
-30°C to +100°C (-22°F to +212°F) |
