249-4164-3334-504F

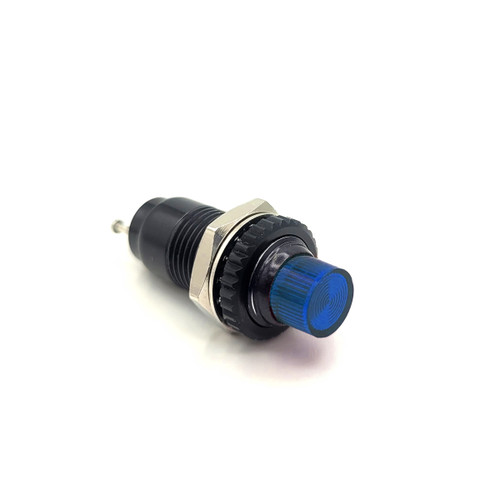

249 LED PMI 0.375" Cylindrical Blue, 5 VDC

  • Specifications

    Specifications
    Series 249
    Certifications RoHS, UL
    Status Active
    Mounting Hole Size 0.375" (9.53mm)
    Output Single Color
    Emitted Color Blue
    LED Position Protruding
    Lens Style Cylindrical
    Lens Color Tinted, Non-Diffused
    Voltage 5 VDC
    Resistor Internal Resistor Included
    Mounting Method Nut/Washer
    Max Panel Thickness 0.312" (7.92mm)
    Mounting Torque 8 – 10
    Mounting Torque Unit of Measure lb-in
    Typical Current (mA) 10
    Typical Intensity (mcd) 700
    Termination Turret
    Housing Material Aluminum
    Housing Finish Black Anodized
    Lock Washer Phosphor Bronze - White Nickel Plated
    Nut Brass - White Nickel Plated
    Operating Temperature -55°C to +71°C (-67°F to +160°F)
    Storage Temperature -55°C to +71°C (-67°F to +160°F)
